Home > Dakota Digital > Direct Fit Gauges
Choose a sub category:
chevy car chevy truck 1968-1970 Mopar B Body
Dakota Digital Gauges Direct Fit
Sort By:
1
1960-1963 chevy truck dakota digital gauge package carbon fiber face 1960-1963 chevy truck dakota digital gauge package black face 1960-1963 CHevy truck dakota digital gauge package silver face
1960-1963 chevy truck dakota digital gauge package carbon fiber face
List Price: $895.00
Our Price: $895.00
Sale Price: $850.25
Savings: $44.75
Free Shipping
1960-1963 chevy truck dakota digital gauge package black face
List Price: $895.00
Our Price: $895.00
Sale Price: $850.25
Savings: $44.75
Free Shipping
1960-1963 CHevy truck dakota digital gauge package silver face
List Price: $895.00
Our Price: $895.00
Sale Price: $850.25
Savings: $44.75
Free Shipping
1960-1963 chevy truck dakota digital gauge package carbon fiber face c10 c20 c30 1960-1963 chevy truck dakota digital gauge package black face c10 c20 c30 1960-1963 CHevy truck dakota digital gauge package silver face c10 c20 c30
1964-1966 chevy truck dakota digital gauge package carbon fiber face 1964-1966 chevy truck dakota digital gauge package black face dakota digital vhx chevy truck 6466
1964-1966 chevy truck dakota digital gauge package carbon fiber face
List Price: $895.00
Our Price: $895.00
Sale Price: $850.25
Savings: $44.75
Free Shipping
1964-1966 chevy truck dakota digital gauge package black face
List Price: $895.00
Our Price: $895.00
Sale Price: $850.25
Savings: $44.75
Free Shipping
1964-1966 CHevy truck dakota digital gauge package silver face
List Price: $895.00
Our Price: $895.00
Sale Price: $850.25
Savings: $44.75
Free Shipping
1964-1966 chevy truck dakota digital gauge package carbon fiber face c10 c20 c30 1964-1966 chevy truck dakota digital gauge package black face c10 c20 c30 1964-1966 CHevy truck dakota digital gauge package silver face c10 c20 c30
Dakota Digital 47 48 49 50 51 52 53 Chevy GMC Truck Analog Dash Gauge Black Alloy White VHX-47C-PU-K-W Dakota Digital 67 - 72 Chevy Pickup Truck Analog Dash Gauge & Clock Silver Alloy Blue VHX-67C-PA-S-B Dakota Digital 73-87 Chevy Pickup Customizable Gauge System Black HDX-73C-PU-K
Dakota Digital 47 48 49 50 51 52 53 Chevy GMC Truck Analog Dash Gauge Black Alloy White VHX-47C-PU-K-W
List Price: $895.00
Our Price: $895.00
Sale Price: $850.25
Savings: $44.75
Free Shipping
Dakota Digital 1967- 72 Chevy Pickup with Digital Clock
List Price: $995.00
Our Price: $995.00
Sale Price: $945.25
Savings: $49.75
Free Shipping
Dakota Digital 73-87 Chevy Pickup Customizable Gauge System Black HDX-73C-PU-K
List Price: $1,495.00
Our Price: $1,495.00
Sale Price: $1,420.25
Savings: $74.75
Free Shipping
  • Included Displays: Speedometer, Tachometer, Oil Pressure, Water Temp, Voltmeter, Fuel Level.
  • Also shown in digital message center: Odometer, Trip Odometer, Resettable Service Odometer, Clock, Hour Meter, 0-60 MPH Timer...
  • Various Indicators can be displayed: Turn Signals, High Beam, Check Engine, Parking Brake, Cruise Control…
  • Necessary sensors included for oil pressure (1/8” NPT), Water Temp (1/8" with bushings for 1/4", 3/8", 1/2” NPT
  • as well 12mm and 16mm for GM & LS applications) and speedometer pulse generator.
These classic trucks strike a nerve with people everywhere, yet the simple dual-round gauge layout has long posed a challenge for rodders seeking more information. Dakota Digital offers six analog instruments and two LCD message centers in custom-machined and chromed bezels that fit directly into the stock gauge openings of both Chevy and GMC trucks.

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems . Completely engineered and manufactured at our the Dakota Digital facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry.

For many enthusiasts, the 67-72 Chevy Truck set a new standard in styling. What better way of modernizing this iconic truck than an update like the VHX Series?

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems . Completely engineered and manufactured at our facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!

*The VHX-67C-PU and VHX-67C-PA fit into a stock or reproduction front dash bezel, ICM-67C-PU sold separately below.

Lighting Options

Multiple Styles to choose from

*Bezel not included, shown for visual/presentation purposes.
System uses OEM or reproduction style bezel.

VHX-67C-PU: 1967- 72 Chevy Pickup with Digital Clock

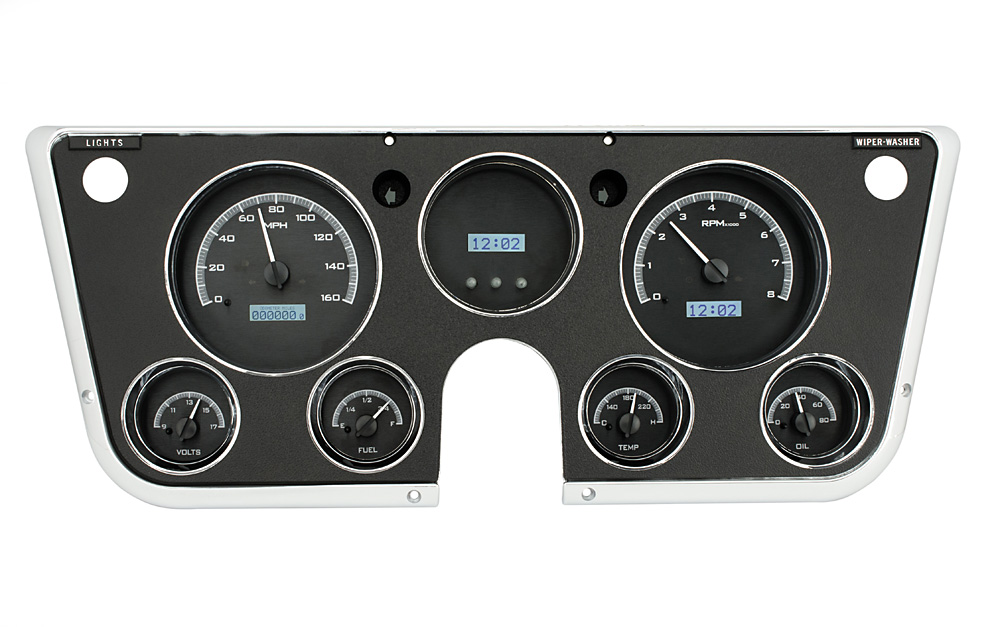

Black Alloy Background with Digital Clock

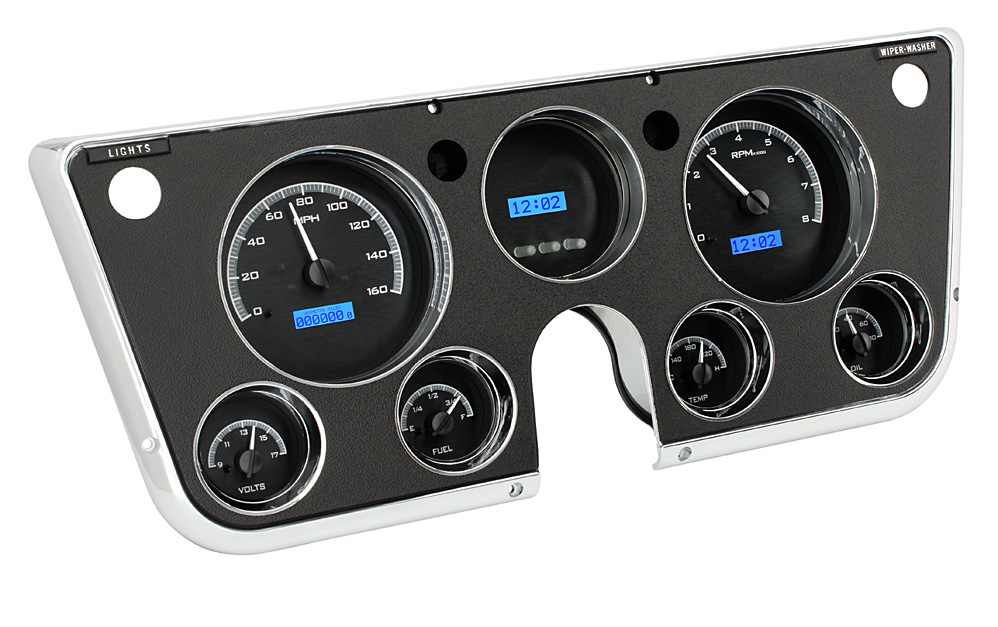

Black Alloy Background, Blue Lighting

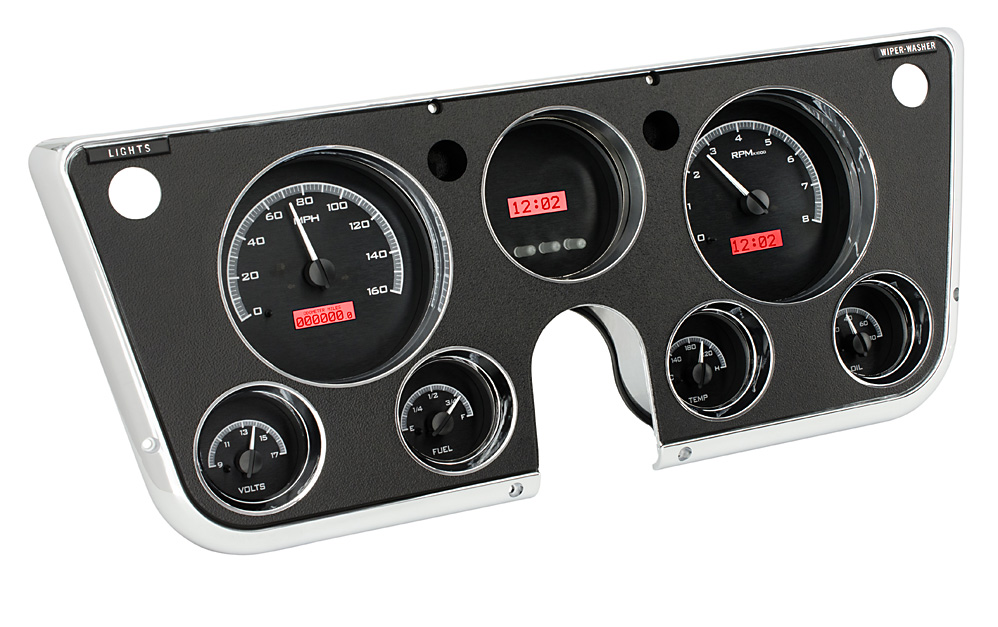

Black Alloy Background, Red Lighting
Black Alloy Background, White Lighting
VHX-67C-PU: Black Alloy Background, White Lighting

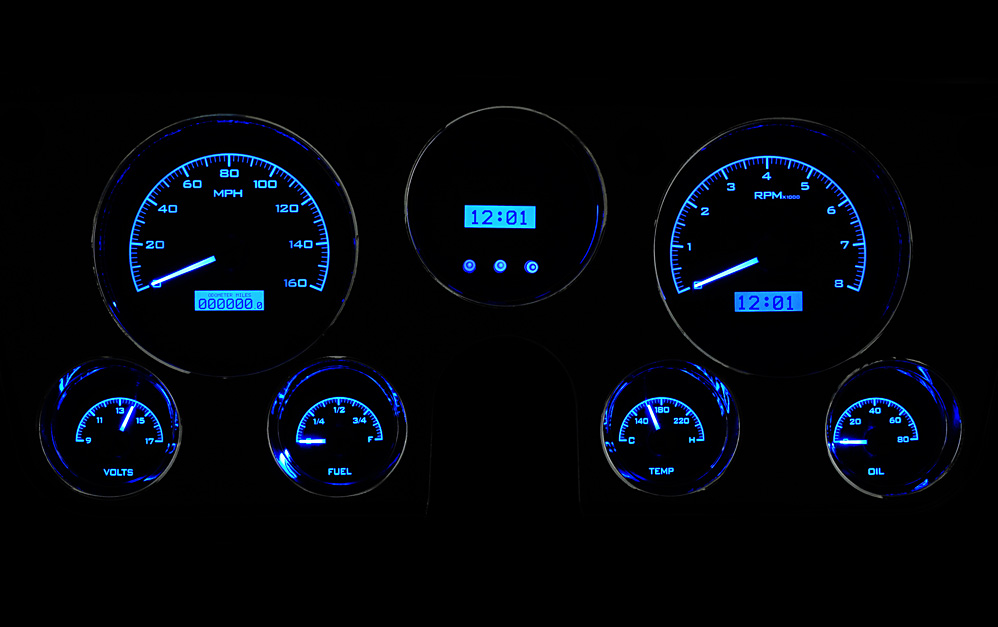

Blue Lighting at Night

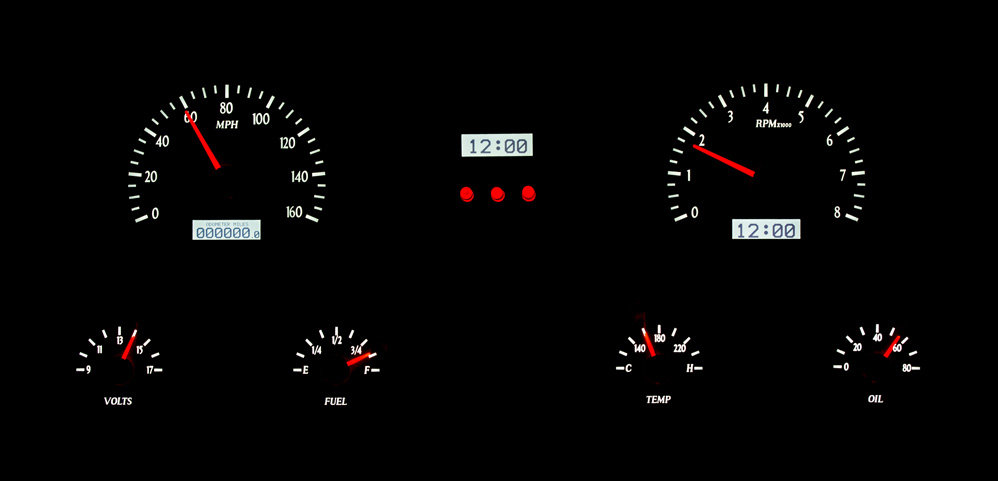

Red Lighting at Night

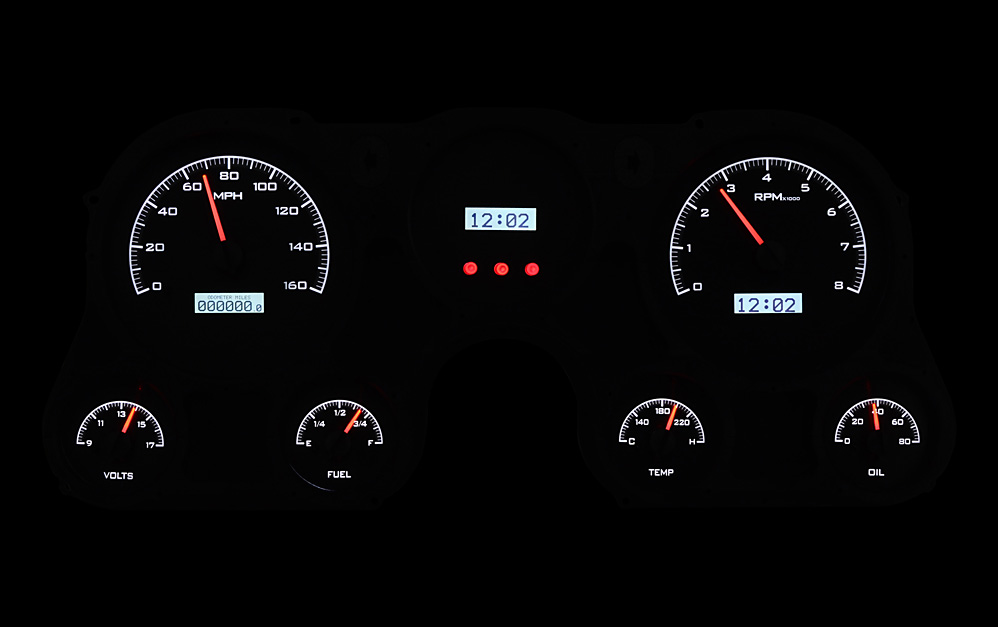

White Lighting at Night

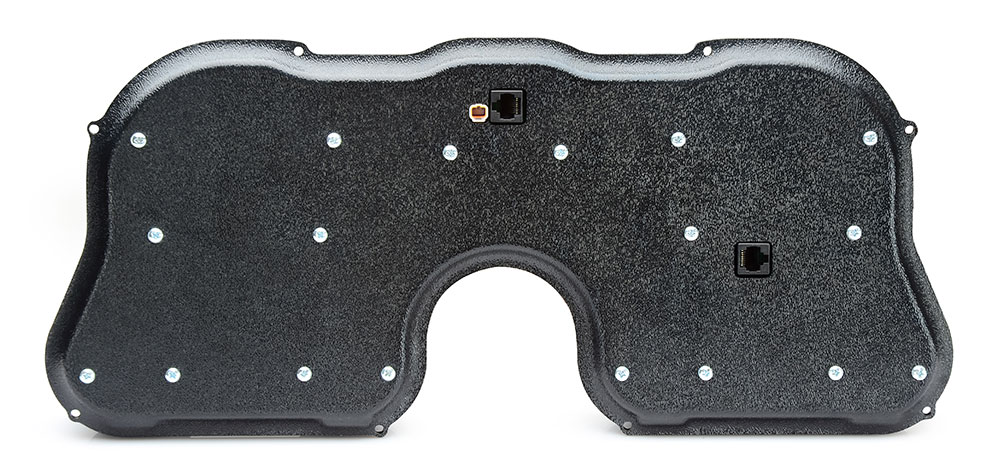

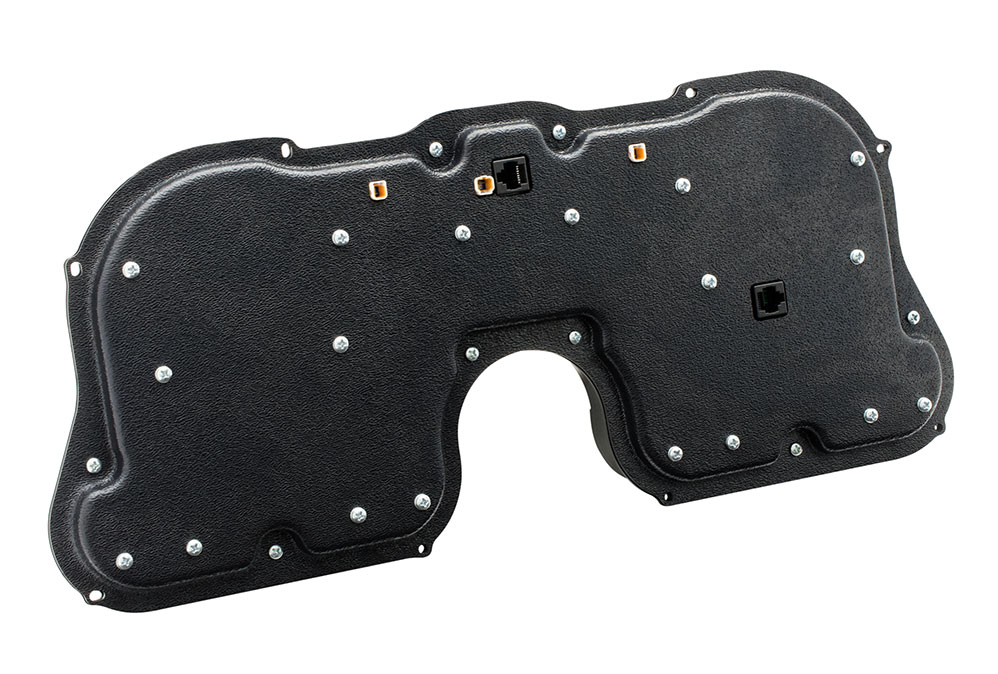

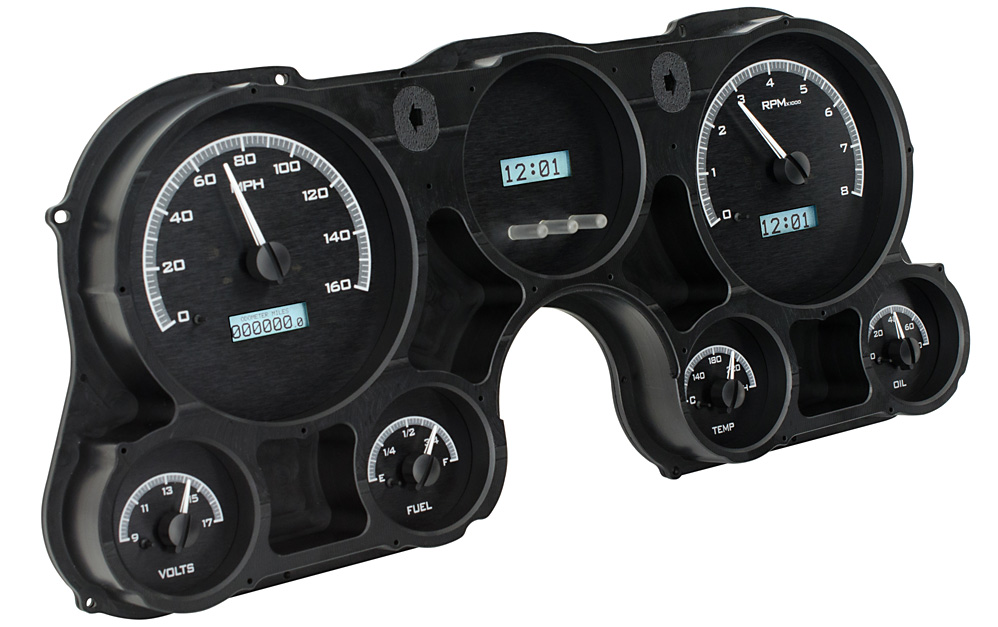

VHX-67C-PU: Rearview

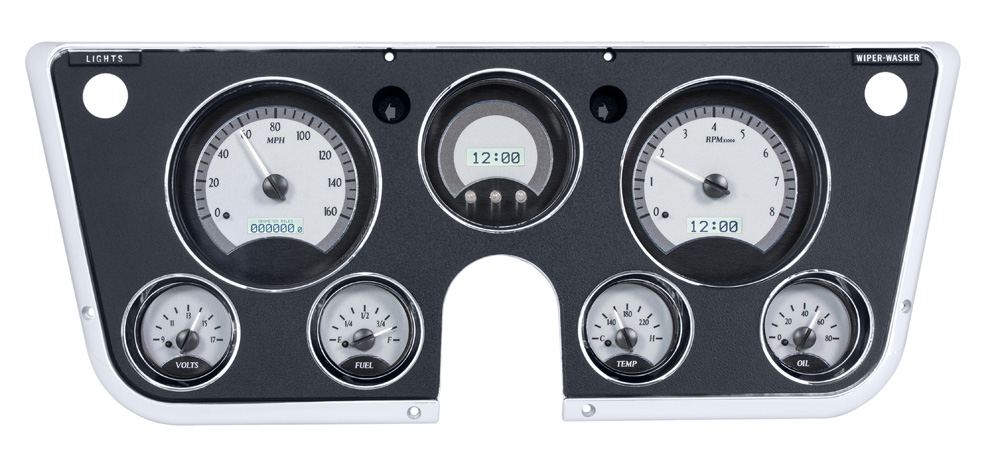

Silver Alloy Background with Digital Clock

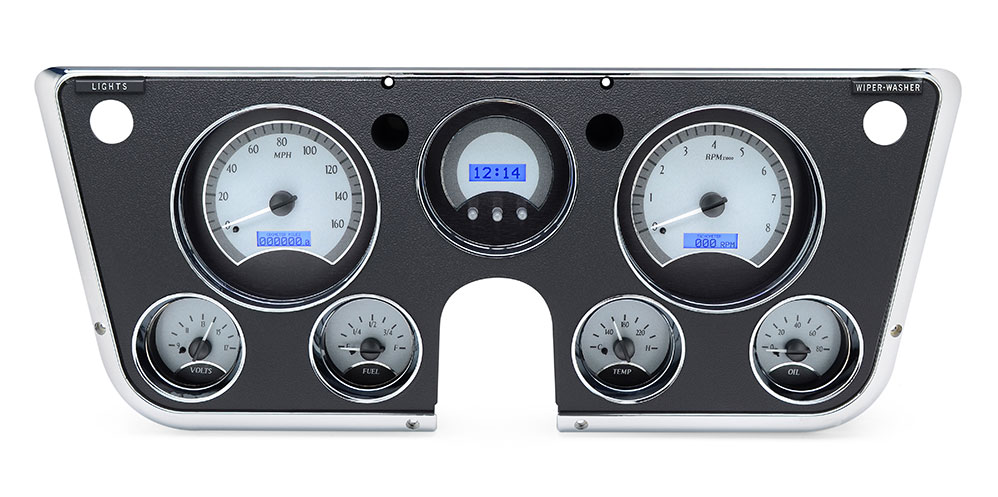

Silver Alloy Background, Blue Lighting

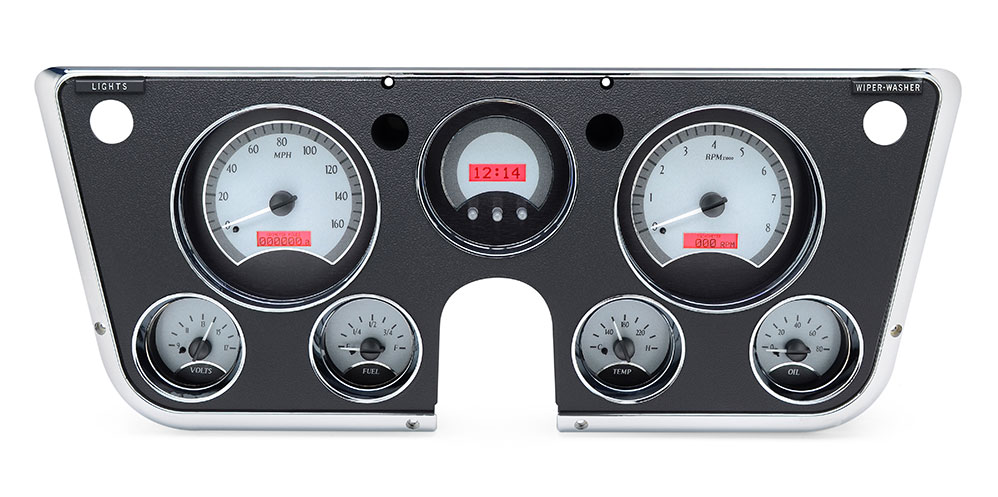

Silver Alloy Background, Red Lighting

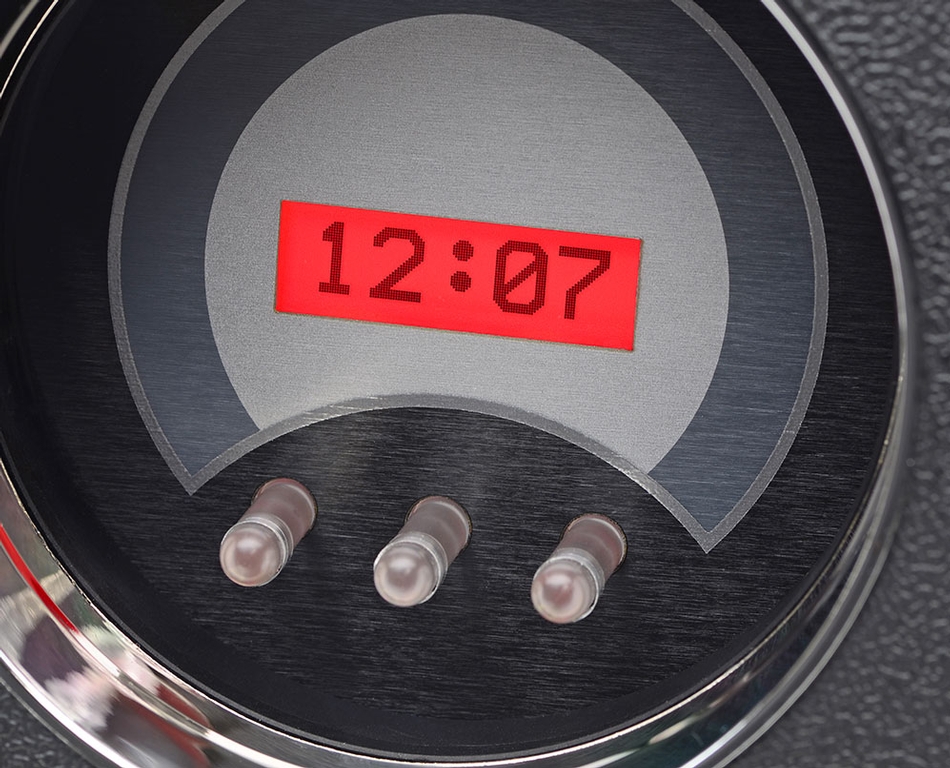

VHX-67C-PU: Clock Detail; Silver Alloy Background, Red Lighting
Silver Alloy Background, White Lighting
Blue Lighting at Night
Red Lighting at Night
White Lighting at Night

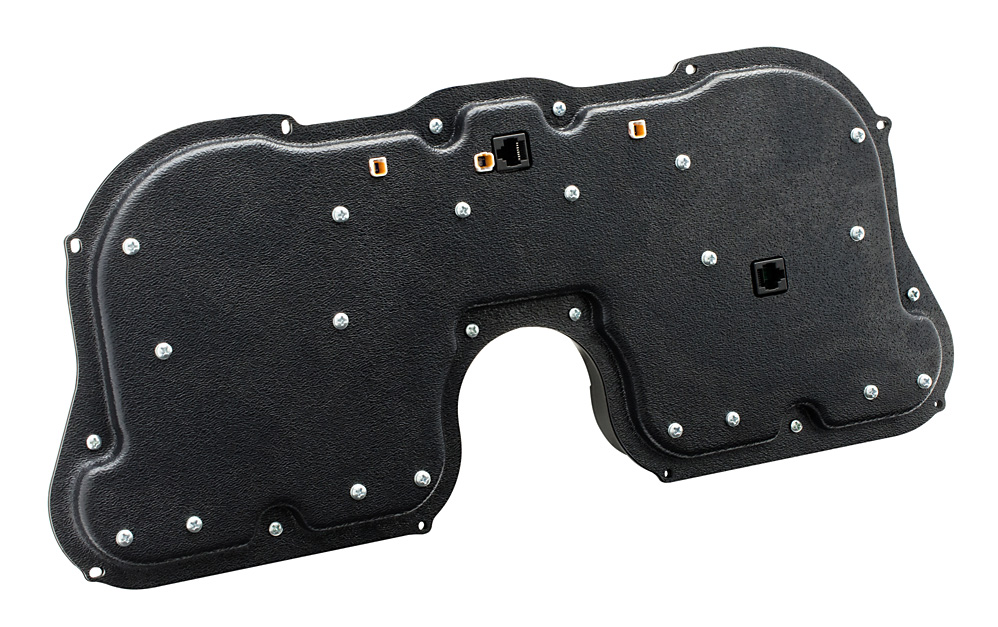

VHX-67C-PU: Rearview
Carbon Fiber Background with Digital Clock
Carbon Fiber Background, Blue Lighting

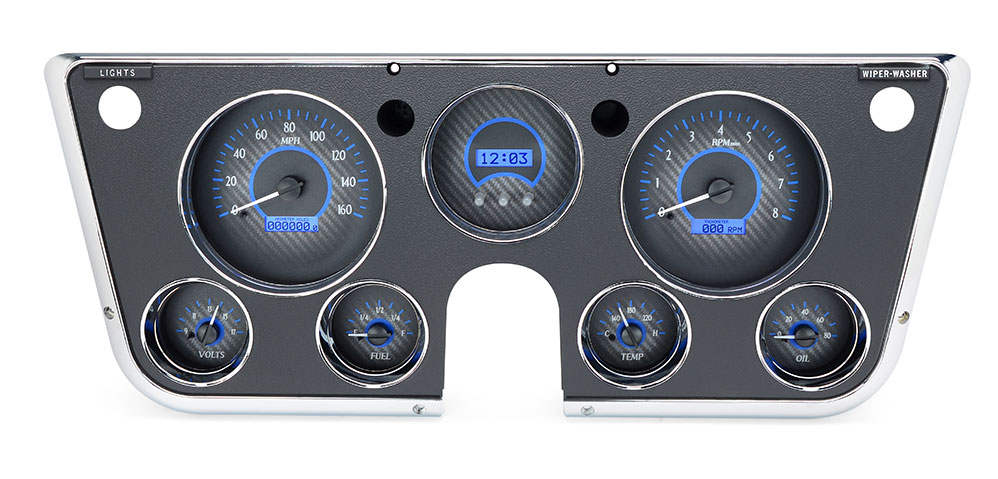

VHX-67C-PU: Carbon Fiber Background, Blue Lighting

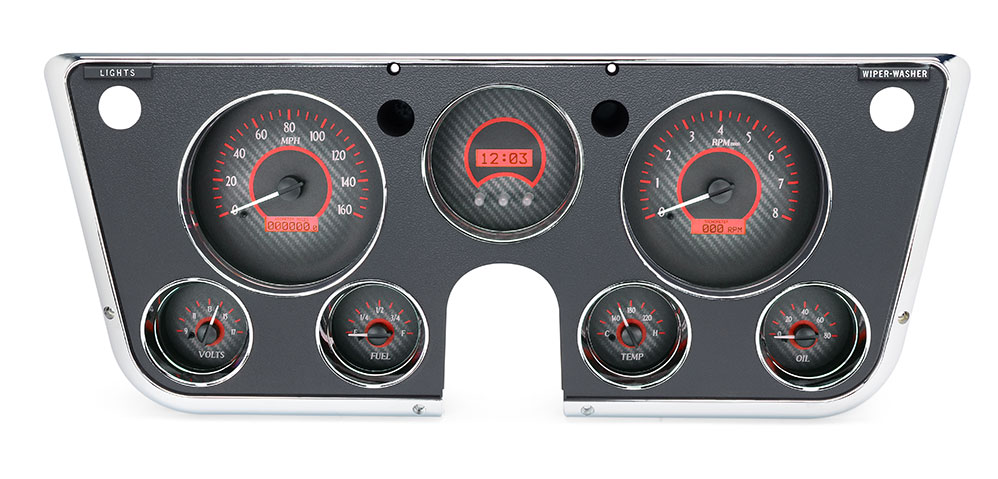

Carbon Fiber Background, Red Lighting

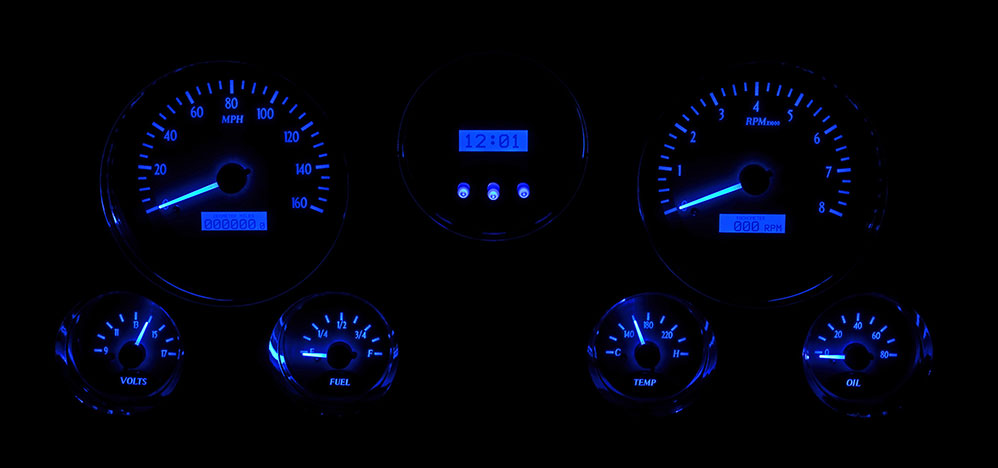

Blue Lighting at Night

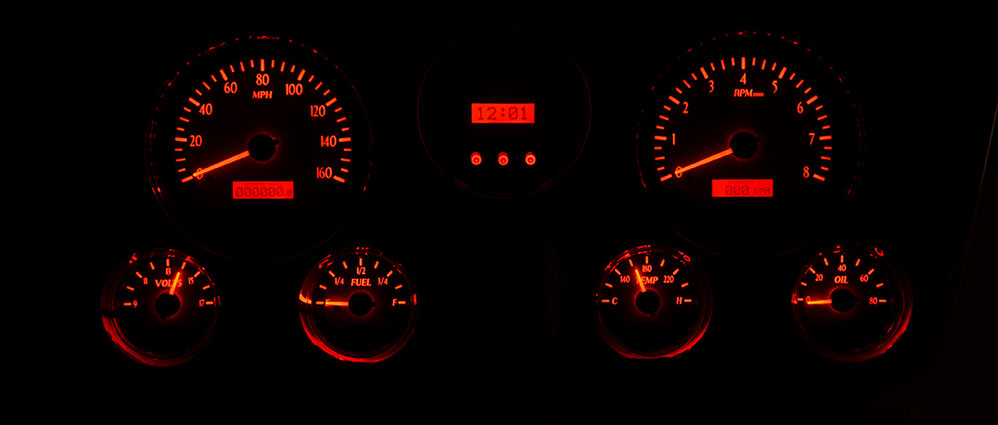

Red Lighting at Night
VHX-67C-PU: Rearview

Analog Gauges
Speedometer
·0 -160 MPH (optional metric version 0- 255 kmh)
Tachometer
·0- 8,000 RPM
Oil Pressure
·0- 80 psi
Water Temperature
·100- 260ºF (optional metric version 40- 120ºC)
Fuel Level
·E, 1/4, 1/2, 3/4, F
Voltmeter
·9- 17 VDC
Lighting
·Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.

Digital Message Centers

Standard Displays
·Odometer (One time user settable, Million Mile)
·Dual (A/B) Trip Meter (0- 9,999.9)
·Clock (12 hour)
Performance Meters
·0- 60 MPH Timer (0- 100 kmh)
·1/4 mile time
·1/4 mile end speed (trap speed)
·High speed recall
·High RPM recall
Gauges
·Speedometer (0- 255 MPH/kmh)
·Tachometer (0- 9,900 RPM)
·Oil Pressure (0-100 psi displayed in 1 psi increments)
·Water Temperature (100- 300ºF/ 40- 150ºC displayed in 1 ºF/ºC increments)
·Voltmeter (9- 17 VDC)
·Fuel Level (0-99% full)
Lighting
·Auto-contrasting LCD display for optimal view in the brightest of sunlight.
·LED backlit at night to match/ complete the look at night.

Built-in Indicators

Indicators
·Turn Signals (Left/ Right)
·High Beam
·Check Engine
·Parking Brake
·Cruise Control (On/ On & Engaged when vehicle is equipped)
·Gear Position (Optional GSS-2000 sensor required)
·4 x 4 (When vehicle is equipped)
·Wait to Start (When vehicle is equipped)

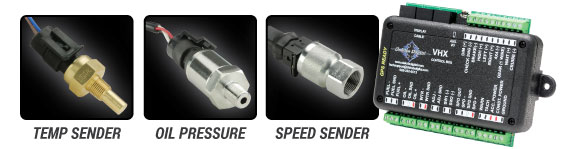

Included Sensors

sVHX Specs GM (bottom)
Water Temperature
·1/8" NPT, ground isolated sensor with a 10 ft harness.
Oil Pressure
·1/8" NPT solid state sensor with a 10 ft harness.
Cable Driven Speed Sensor/ Generator
·Replaces GM style speedometer cables with a 10 ft harness.
(Tremec and Ford style adaptors available on request.)
Bushings
·Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Calibration

Pushbutton
·Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.
Having a hard time deciding which background LED color to go with for your gauge set. Well look no further as this offering from Dakota Digital has you covered. You can change the LED display lighting on the fly so when you get tired of one color just switch to the next using the capicitive button or your phone via the Android or Apple Bluetooth App.
  • Included Analog Gauges: Speedometer, Tachometer, Oil Pressure, Water Temp, Voltmeter, and Fuel Level.
  • Black alloy gauge-face styling, each HDX system allows the user to select their favorite illumination color for the gauge readings and needles, as well as the TFT message center displays.
  • Various Indicators can be displayed in the Digital Message Centers: Turn Signals, High Beam, Check Engine, Parking Brake, Cruise Control, Odometer, Clock, Trip Meter...
  • Necessary sensors included for oil pressure (1/8” NPT), Water Temp (1/8" with bushings for 1/4", 3/8", 1/2” NPT as well 12mm and 16mm for GM & LS applications) and speedometer pulse generator.
  • Bezel shown in any pics is not included, shown for illustrative purposes only. Fits into stock or reproduction style bezel.
Still affordable and easy to find, 1973-87 Chevy and GMC pickups are gaining ground in the truck popularity contest. We love ‘em for the stock cluster arrangement; a big speedo and tach front and center with the satellites to the side. We added a TFT-display in each large opening for the utmost in customization; view any parameters you like while the integrated buttons make calibration a cake-walk. Stick this in your 1973-91 Blazer, Suburban or heavy duty pickup too!

Available with your choice of black or silver alloy gauge-face styling, each HDX system allows the user to select independent illumination colors for the gauge readings and needles, as well as the message centers. Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons, or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons. All HDX instrument systems feature dead-faced indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge. With our central control box, installation is greatly simplified with vehicle-harness sourced signals and supplied, solid state sending units connecting cleanly to their respective terminal.
*Bezel not included, shown for visual/presentation purposes.
System uses OEM or reproduction style bezel.
Dakota Digital 1967- 72 Chevy Pickup HDX Instruments Dakota Digital 1973- 87 Chevy Pickup, 1973- 91 Chevy Blazer, GMC Jimmy and Suburbans RTX Instruments Dakota Digital 1973- 87 Chevy Pickup, 1973- 91 Chevy Blazer, GMC Jimmy and Suburbans RTX Instruments
Dakota Digital 1967- 72 Chevy Pickup HDX Instruments
List Price: $1,595.00
Our Price: $1,595.00
Sale Price: $1,515.25
Savings: $79.75
Free Shipping
Dakota Digital 1973- 87 Chevy Pickup, 1973- 91 Chevy Blazer, GMC Jimmy and Suburbans RTX Instruments
List Price: $1,595.00
Our Price: $1,595.00
Sale Price: $1,515.25
Savings: $79.75
Free Shipping
Dakota Digital 1973- 87 Chevy Pickup, 1973- 91 Chevy Blazer, GMC Jimmy and Suburbans RTX Instruments
List Price: $1,595.00
Our Price: $1,595.00
Sale Price: $1,515.25
Savings: $79.75
Free Shipping

The high-water mark of classic trucks, 1967-72 GM pickups have been, and always will be, the favorite. The original seven-hole cluster offers plenty of room, so why not fill it with the best? Six analog gauges plus a clock and twin TFT message centers make use of the space, ensuring the driver is in the know. System fits stock or reproduction dash bezel, available separately.

Available with your choice of black or silver alloy gauge-face styling, each HDX system allows the user to select independent illumination colors for the gauge readings and needles, as well as the message centers. Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons, or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons. All HDX instrument systems feature dead-faced indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge. With our central control box, installation is greatly simplified with vehicle-harness sourced signals and supplied, solid state sending units connecting cleanly to their respective terminal.

Pick from black alloy or silver Alloy

*Bezel not included, shown for visual/presentation purposes.
System uses OEM or reproduction style bezel.

Analog Gauges
Speedometer
·0 -160 MPH (optional metric version 0- 260 kmh)
·Split scale provides resolution of a 120MPH speedometer, with a top end range of 160MPH.
Tachometer
·0- 8,000 RPM
Oil Pressure
·0- 80 psi
Water Temperature
·100- 260ºF (optional metric version 40- 120ºC)
Fuel Level
·E, 1/4, 1/2, 3/4, F
Voltmeter
·9- 17 VDC
Clock
·12 Hr Analog Clock Movement
Digital Message Centers
Standard Displays
·Odometer (One time user settable, Million Mile)
·Dual (A/B) Trip Meter (0- 9,999.9)
·Clock (12 hour)
·Estimated Range/ Miles to Empty
Performance Meters
·0- 60 MPH Timer (0- 100 kmh)
·1/4 and 1/8 mile time
·1/4 and 1/8 mile end speed (trap speed)
·High speed recall
·High RPM recall
Gauges
·Turn Signals (Left/ Right)
·High Beam
·Check Engine
·Parking Brake
·Cruise Control (On/ On & Engaged when vehicle is equipped)
·Gear Position (Optional GSS-2000 sensor required)
·4 x 4 (When vehicle is equipped)
·Wait to Start (When vehicle is equipped)
·Two Auxiliary input indicators with user-programmable labels
·Each analog gauge sweep contains a red LED indicator for quick notice of a warning condition (except speedometer)

Lighting Technology

Colors
·Over 30 user-selectable color options allow you to independently change the needle color, sweep color and digital TFT display color.
Brightness
·Both daytime and nighttime brightness can be easily controlled through the HDX setup menu, allowing you to choose your preferred lighting intensity level, toggled by the activation of the headlight switch. If on-the-fly rotary type control is desired, the DIM-1 is a common accessory to add this functionality.
Themes
·With 12 factory preset color themes, you can quickly create a beautiful looking system. Or, for the ultimate in customization, choose all of the color zones yourself.
Technology
·Full LED backlighting provides a strikingly visual gauge package, with sharp contrast for ease of viewing both night and day. Full RBG backlighting allows you to create the specific color you want, with a unique daytime and nighttime theme if desired. Whether your goal is an OE look or something truly bold, the HDX Series lets you make that choice.

Included Sensors

Analog Gauges
Speedometer
·0 -160 MPH (optional metric version 0- 260 kmh)
·Split scale provides resolution of a 120MPH speedometer, with a top end range of 160MPH.
Tachometer
·0- 8,000 RPM
Oil Pressure
·0- 80 psi
Water Temperature
·100- 260ºF (optional metric version 40- 120ºC)
Fuel Level
·E, 1/4, 1/2, 3/4, F
Voltmeter
·9- 17 VDC
Clock
·12 Hr Analog Clock Movement
Digital Message Centers
Standard Displays
·Odometer (One time user settable, Million Mile)
·Dual (A/B) Trip Meter (0- 9,999.9)
·Clock (12 hour)
·Estimated Range/ Miles to Empty
Performance Meters
·0- 60 MPH Timer (0- 100 kmh)
·1/4 and 1/8 mile time
·1/4 and 1/8 mile end speed (trap speed)
·High speed recall
·High RPM recall
Gauges
·Turn Signals (Left/ Right)
·High Beam
·Check Engine
·Parking Brake
·Cruise Control (On/ On & Engaged when vehicle is equipped)
·Gear Position (Optional GSS-2000 sensor required)
·4 x 4 (When vehicle is equipped)
·Wait to Start (When vehicle is equipped)
·Two Auxiliary input indicators with user-programmable labels
·Each analog gauge sweep contains a red LED indicator for quick notice of a warning condition (except speedometer)

Lighting Technology

Colors
·Over 30 user-selectable color options allow you to independently change the needle color, sweep color and digital TFT display color.
Brightness
·Both daytime and nighttime brightness can be easily controlled through the HDX setup menu, allowing you to choose your preferred lighting intensity level, toggled by the activation of the headlight switch. If on-the-fly rotary type control is desired, the DIM-1 is a common accessory to add this functionality.
Themes
·With 12 factory preset color themes, you can quickly create a beautiful looking system. Or, for the ultimate in customization, choose all of the color zones yourself.
Technology
·Full LED backlighting provides a strikingly visual gauge package, with sharp contrast for ease of viewing both night and day. Full RBG backlighting allows you to create the specific color you want, with a unique daytime and nighttime theme if desired. Whether your goal is an OE look or something truly bold, the HDX Series lets you make that choice.

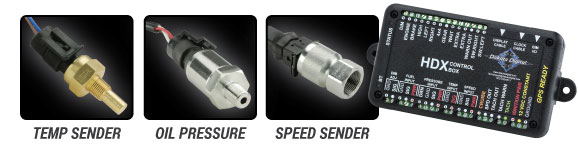

Included Sensors

sHDX Specs GM (bottom)
Water Temperature
·1/8" NPT, ground isolated sensor with a 10 ft harness.
Oil Pressure
·1/8" NPT solid state sensor with a 10 ft harness.
Cable Driven Speed Sensor/ Generator
·Replaces GM style speedometer cables with a 10 ft harness.
(Tremec and Ford style adaptors available on request.)
Bushings
·Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Calibration and Use

Pushbutton Control
·All HDX Series Instrument Systems include LED-lit onboard capacitive touch pushbuttons through the gauge face. These pushbuttons provide quick and consistent access to all functions, either in driving mode or while in the setup menu. Button-press feedback is available through the TFT Message Center, or through the included buzzer. Additionally, remote mounted switches can be wired into the HDX system if this proves more accessible based upon seating position. The HDX Series can also be completely configured through the Bluetooth app, suitable to Android and Apple devices. Using your existing tablet or smart phone, download the free app, sync your device to the HDX system, and enjoy quick and convenient menu navigation and real time gauge readouts for diagnostic use or a secondary display.
Calibration
·All calibration settings are handled through onboard capacitive touch switches or the remote Bluetooth app. While many calibration settings exist, the speedometer and fuel level are completed in most cases (unless GPS-50-2 is used, negating the need to calibrate the speedometer) through a few taps of the pushbuttons and a short test drive of the vehicle.
Paying tribute to all three gauge designs available over the years (1973-75, 1976-78 and 1979-87), the RTX series maintains the beloved Chevy and GMC square-body look while bringing in late-model elements. A bolt-in affair with your stock or aftermarket front bezel (not supplied), the twin TFT message centers give the look of a vintage tumbler odometer, but can be expanded with auxiliary readings to keep you informed. Retains stock gear-indicator and the factory turn signal locations are now LED-lit.
The RTX series is the latest from Dakota Digital, focused on retaining that stock look without sacrificing the late-model features you love. Every effort has been put forth to incorporate OEM design elements regarding the layout, face styling and indicators. A casual glance may dismiss these as original equipment, but once you hit the switch and the LED backlighting comes on in your favorite color scheme, all doubts will be removed.
Starting from scratch, CNC machined housings are filled with electronics designed and built in-house, helping Dakota Digital once again raise the bar for aftermarket instrumentation. The high-definition TFT message centers can be fully configured to display just about any piece of information needed. As you’ve come to expect from Dakota Digital, the RTX series utilizes a central control box to make installation and setup as easy as possible. Click the tabs below for a more in-depth look at the RTX series!
*Bezel not included, shown for visual/presentation purposes.
System uses OEM or reproduction style bezel.
Paying tribute to all three gauge designs available over the years (1973-75, 1976-78 and 1979-87), the RTX series maintains the beloved Chevy and GMC square-body look while bringing in late-model elements. A bolt-in affair with your stock or aftermarket front bezel (not supplied), the twin TFT message centers give the look of a vintage tumbler odometer, but can be expanded with auxiliary readings to keep you informed. Retains stock gear-indicator and the factory turn signal locations are now LED-lit.
The RTX series is the latest from Dakota Digital, focused on retaining that stock look without sacrificing the late-model features you love. Every effort has been put forth to incorporate OEM design elements regarding the layout, face styling and indicators. A casual glance may dismiss these as original equipment, but once you hit the switch and the LED backlighting comes on in your favorite color scheme, all doubts will be removed.
Starting from scratch, CNC machined housings are filled with electronics designed and built in-house, helping Dakota Digital once again raise the bar for aftermarket instrumentation. The high-definition TFT message centers can be fully configured to display just about any piece of information needed. As you’ve come to expect from Dakota Digital, the RTX series utilizes a central control box to make installation and setup as easy as possible. Click the tabs below for a more in-depth look at the RTX series!
*Bezel not included, shown for visual/presentation purposes.
System uses OEM or reproduction style bezel.

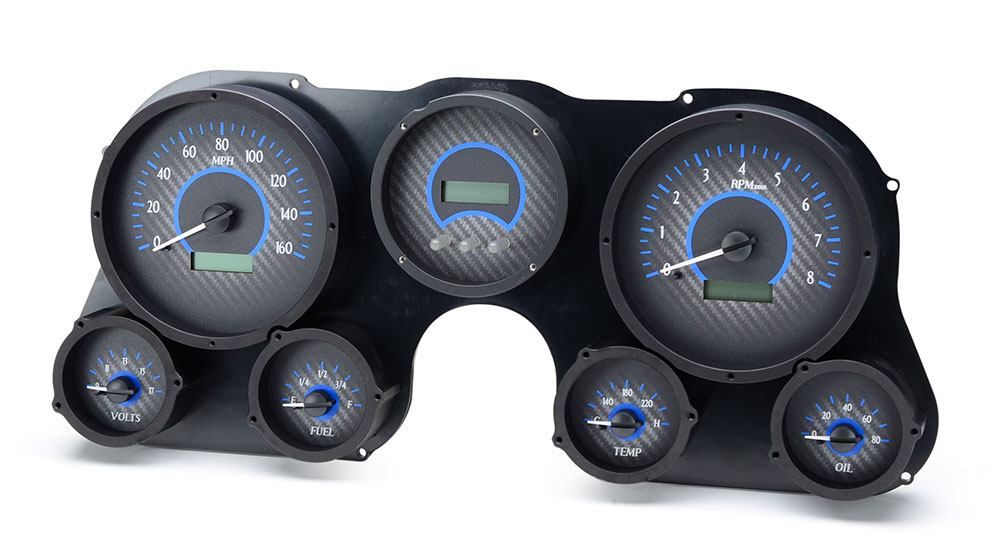

Dakota Digital 1973- 87 Chevy Pickup, 1973- 91 Chevy Blazer, GMC Jimmy and Suburbans RTX Instruments
Dakota Digital 1973- 87 Chevy Pickup, 1973- 91 Chevy Blazer, GMC Jimmy and Suburbans RTX Instruments
List Price: $1,595.00
Our Price: $1,595.00
Sale Price: $1,515.25
Savings: $79.75
Free Shipping
Paying tribute to all three gauge designs available over the years (1973-75, 1976-78 and 1979-87), the RTX series maintains the beloved Chevy and GMC square-body look while bringing in late-model elements. A bolt-in affair with your stock or aftermarket front bezel (not supplied), the twin TFT message centers give the look of a vintage tumbler odometer, but can be expanded with auxiliary readings to keep you informed. Retains stock gear-indicator and the factory turn signal locations are now LED-lit.
The RTX series is the latest from Dakota Digital, focused on retaining that stock look without sacrificing the late-model features you love. Every effort has been put forth to incorporate OEM design elements regarding the layout, face styling and indicators. A casual glance may dismiss these as original equipment, but once you hit the switch and the LED backlighting comes on in your favorite color scheme, all doubts will be removed.
Starting from scratch, CNC machined housings are filled with electronics designed and built in-house, helping Dakota Digital once again raise the bar for aftermarket instrumentation. The high-definition TFT message centers can be fully configured to display just about any piece of information needed. As you’ve come to expect from Dakota Digital, the RTX series utilizes a central control box to make installation and setup as easy as possible. Click the tabs below for a more in-depth look at the RTX series!
*Bezel not included, shown for visual/presentation purposes.
System uses OEM or reproduction style bezel.


1
