1964-1966 chevy truck dakota digital gauge package black face
1964-1966 chevy truck dakota digital gauge package black face

List Price: $895.00
Our Price: $895.00
Sale Price: $850.25
Savings: $44.75


Free Shipping
Product Code: VHX-64C-PU-K

Proposition 65 Warning

WARNING: Handling this product will expose you to lead, a chemical known to the State of CaliforniaWARNING: Handling this product will expose you to lead, a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling. https://www.p65warnings.ca.gov/

Qty:
Description

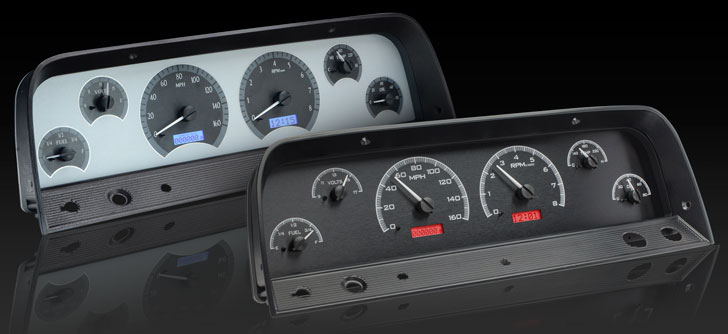

1964- 66 Chevy Pickup VHX Instruments


From Dakota Digital
1964- 66 Chevy Pickup VHX Instruments

For Chevy Truck enthusiasts, the curvy lines of this model made it an instant classic just begging for modern upgrades like the VHX Series.

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems . Completely engineered and manufactured at our facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!

*Does not fit GMC Models
** Does not include bezel, designed to fit stock or reproduction

Analog Gauges

Speedometer0 -160 MPH (optional metric version 0- 255 km/h)
Tachometer0- 8,000 RPM
Oil Pressure0- 80 psi
Water Temperature100- 260ºF (optional metric version 40- 120ºC)
Fuel LevelE, 1/4, 1/2, 3/4, F
Voltmeter9- 17 VDC
LightingBack lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.

Digital Message Centers

Standard Displays
Odometer (One time user settable, Million Mile)
Dual (A/B) Trip Meter (0- 9,999.9)
Clock (12 hour)
Performance Meters
0- 60 MPH Timer (0- 100 kmh)
1/4 mile time
1/4 mile end speed (trap speed)
High speed recall
High RPM recall
Gauges
Speedometer (0- 255 MPH/kmh)
Tachometer (0- 9,990 RPM)
Oil Pressure (0-100 psi displayed in 1 psi increments)
Water Temperature (100- 300ºF/ 40- 150ºC displayed in 1 ºF/ºC increments)
Voltmeter (9- 17 VDC)
Fuel Level (0-99% full)
Lighting
Auto-contrasting LCD display for optimal view in the brightest of sunlight.
LED backlit at night to match/ complete the look at night.

Built-in Indicators

Indicators
Turn Signals (Left/ Right)
High Beam
Check Engine
Parking Brake
Cruise Control (On/ On & Engaged when vehicle is equipped)
Gear Position (Optional GSS-2000 sensor required)
4 x 4 (When vehicle is equipped)
Wait to Start (When vehicle is equipped)

Included Sensors

Water Temperature1/8" NPT, ground isolated sensor with a 10 ft harness.
Oil Pressure1/8" NPT solid state sensor with a 10 ft harness.
Cable Driven Speed Sensor/ GeneratorReplaces GM style speedometer cables with a 10 ft harness.
(Tremec and Ford style adaptors available on request.)
BushingsEach kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Calibration

PushbuttonDakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.
